Plug Wires B-Series

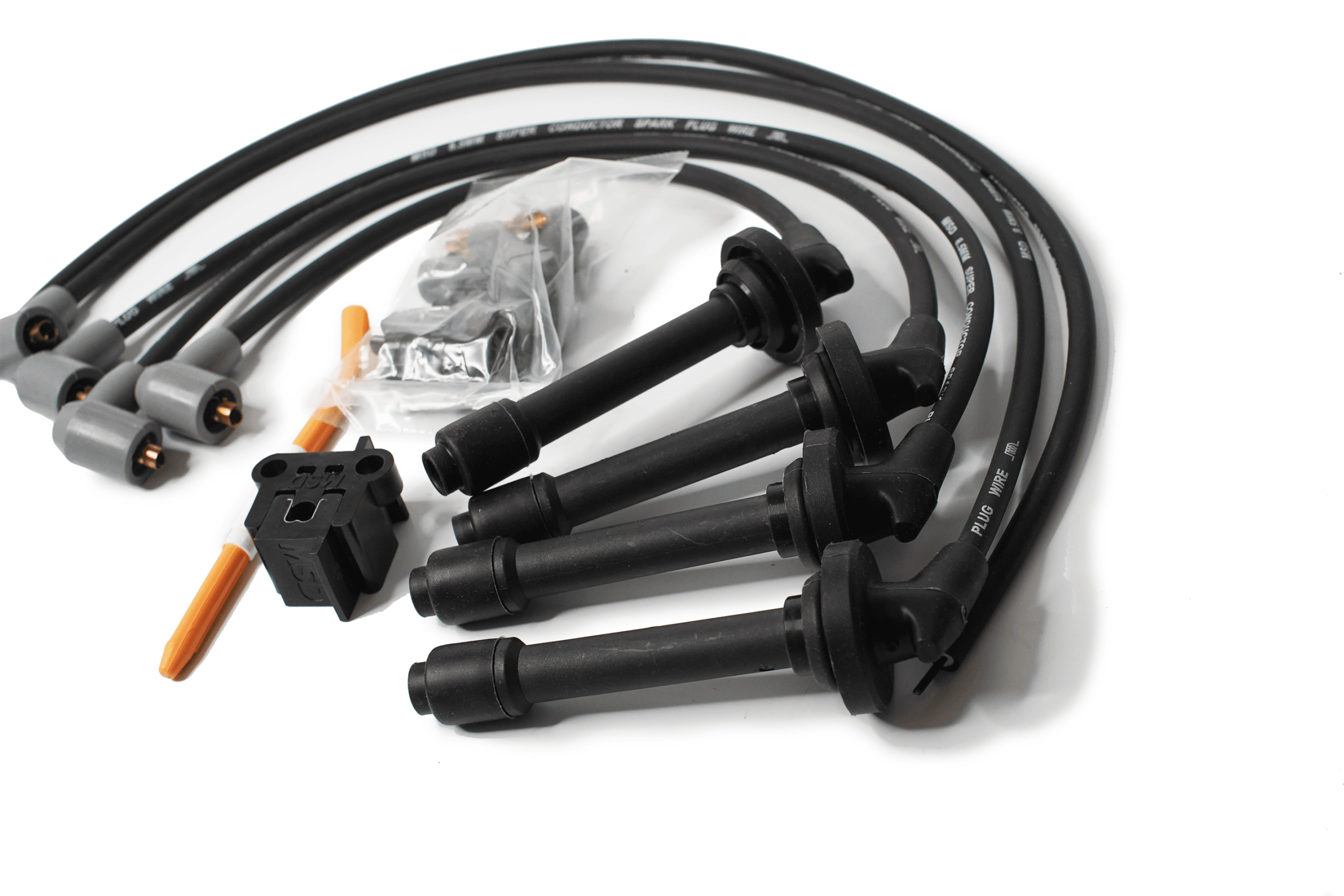

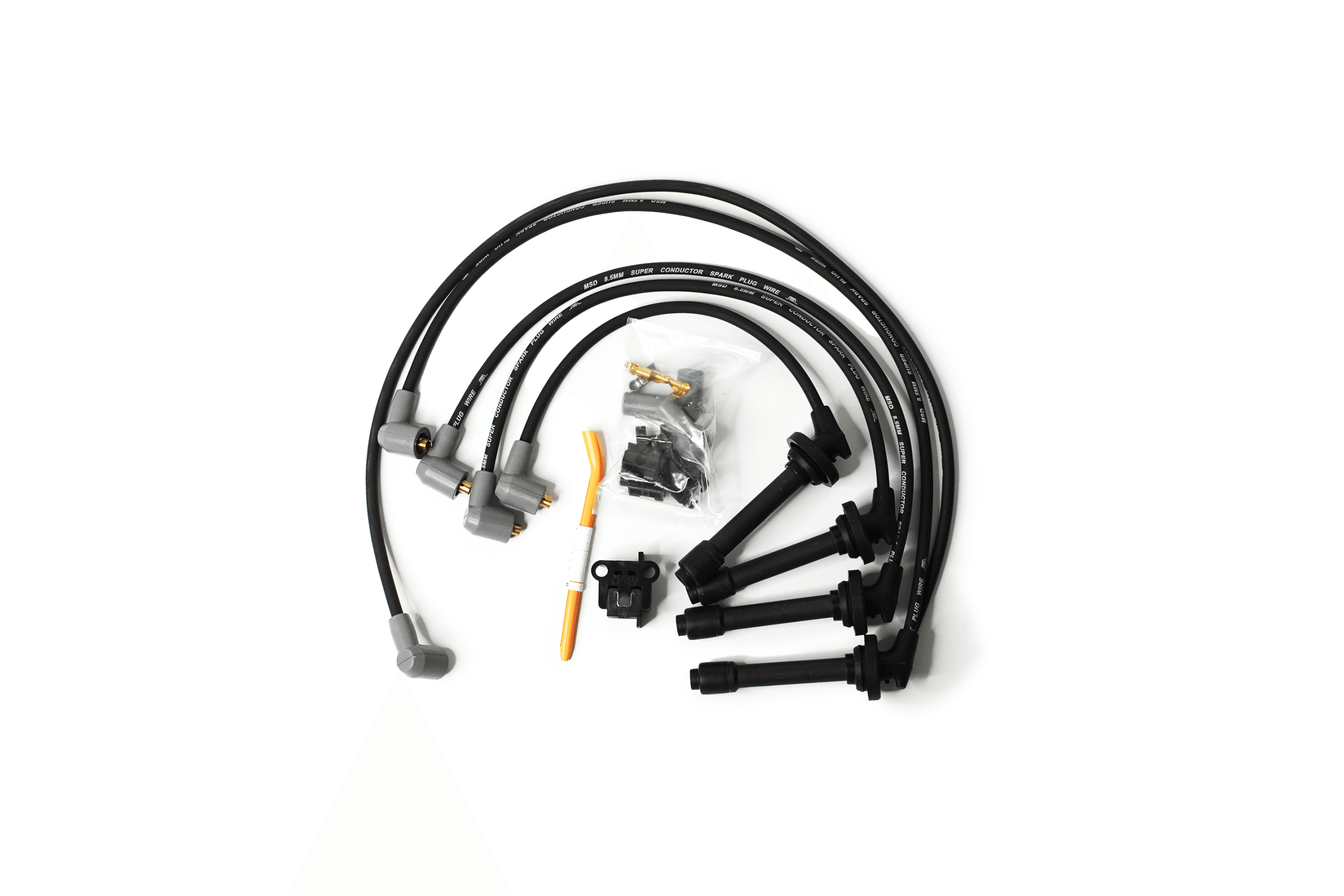

MSD 8.5mm Super Conductor spark plug wire sets feature a special helically wound core that has just 40-50 ohms of resistance per foot—but with an RFI suppression equal to a 1,500 ohm wire. In fact, each foot of finished wire includes 40 ft. of tightly wound copper for superior conductivity. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference “choke.” This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. A tough, 8.5mm synthetic/silicone jacket over an extra-heavy glass braid and dielectric insulator keeps the current guided to the plugs. Underneath the high-temperature boots, dual crimp stainless steel terminals feature snap-locks to ensure a secure fit. Each set comes with clip-on cylinder markers for easy identification. MSD’s 8.5mm Super Conductor wire sets are available in custom or universal-fit applications, assembled or not, with a variety of terminal and boot end options.

Dual Crimp Terminals

The MSD’s 8.5mm spark plug terminals feature “Dual Crimp” terminals. As the name implies, the terminals feature two crimps; one for the sleeve of the wire and another separate crimp to grasp the conductor. By having separate crimps, the conductor doesn’t need to be bent 180° and get squeezed between the terminal and sleeve. This individual conductor crimp produces a more secure crimp and there is less chance of spark arcing to the engine block or exhaust manifold through the boot!

FEATURES

Replaces factory part number:
32722-P30-405
